Confirming Optimize's Object Variable Flattening Cost With a Controlled A/B Test

In a previous Chaos Day and its variable-filtering follow-up, we measured Optimize's Elasticsearch overhead against Self-Managed load tests. Running the same kind of test against a Camunda SaaS cluster turned up something we didn't expect: Optimize's disk footprint there looks nothing like what we'd measured on Self-Managed. This Chaos Day traces that discovery to its root cause and confirms it through a controlled experiment.

TL;DR; A week-long test against a SaaS Advanced 4x cluster showed Optimize's indices taking up only ~7-10% of total Elasticsearch disk, versus ~59-100% on our Self-Managed weekly load test running the exact same workload. The cause: Optimize's includeObjectVariableValue flag (env CAMUNDA_OPTIMIZE_ZEEBE_INCLUDE_OBJECT_VARIABLE) defaults to true and flattens every JSON object variable into one stored variable per property, plus the raw serialized object itself. Camunda SaaS explicitly disables this; the public Self-Managed Helm chart does not, so any Self-Managed deployment that hasn't touched this setting silently pays for it. We confirmed this with an isolated A/B test that changes only this one flag: Optimize's ES disk share dropped from 62.8% to 7.6%, an 8.3x reduction, for the same workload. The number that matters most for capacity planning: total secondary storage per root process instance dropped from 6.34 MB to 2.97 MB, a 2.13x reduction. This ratio is specific to our payload's shape: flattening recurses through nested JSON with no depth limit, so a payload with deeper nesting or more object fields can cost considerably more than this.

Chaos Experiment

How we got here

While setting up a SaaS test comparable to our Self-Managed weekly load test (Advanced 4x, closest match to our Self-Managed hardware), we expected similar behavior to what we'd already measured: Optimize being the dominant Elasticsearch disk consumer, eventually filling the disk without a tighter ILM policy than SaaS's defaults (30 days for Operate/Tasklist, 180 for Optimize, vs. our load test's 1-3 days).

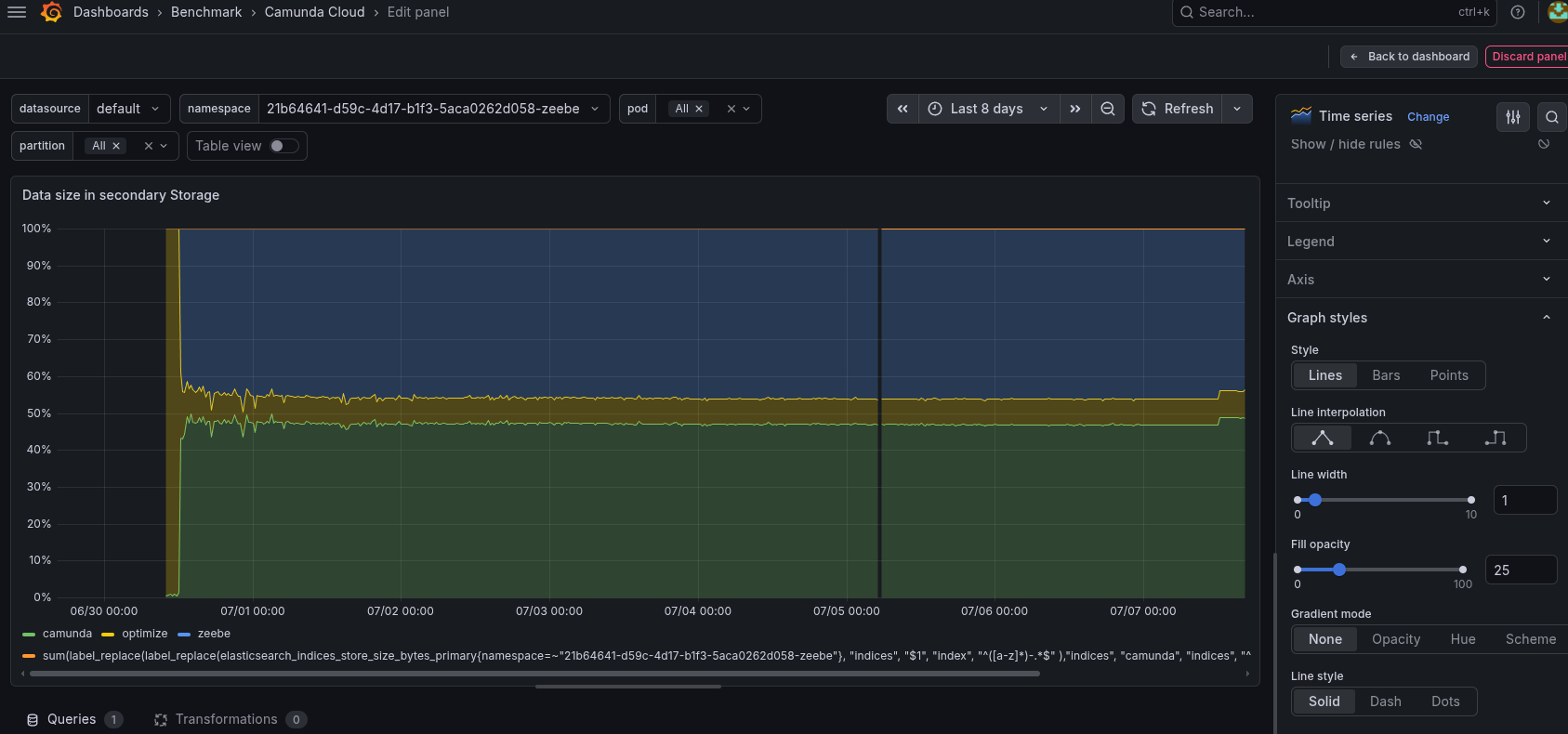

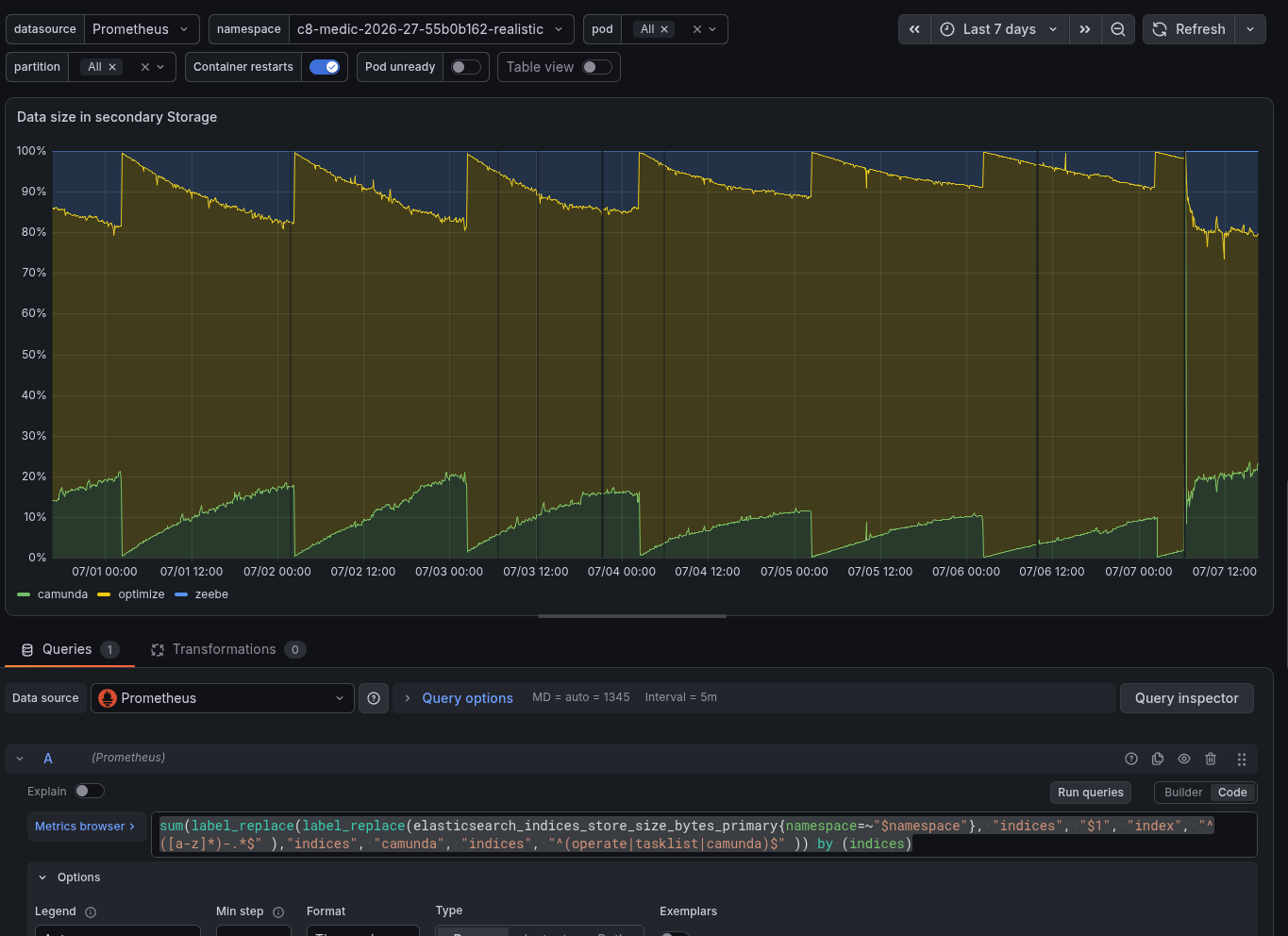

What we found instead, after a week:

	SaaS (Advanced 4x)	Self-Managed (weekly load test)
Optimize's share of total ES disk	~7-10%	~59-100%

Same realistic workload (~1 root PI/s, 50 sub-process instances per root), same process definitions, wildly different Optimize disk footprint. The batch size and page-fetch metrics also differed between the two, hinting at a configuration gap somewhere, but nothing obviously explained a footprint difference this large.

Finding the flag

During the investigation, we detected the object variable handling. Our realisticPayload.json load-test payload includes a customer variable that's a JSON object (five string fields: firstname, lastname, email, phone, address) and a disputeDetails variable, also an object. Optimize's object variable flattening feature, controlled by includeObjectVariableValue, turns each object variable into one stored Optimize variable per property, plus the raw serialized value. That's a plausible source of a large, silent multiplier.

Checking the code confirmed it:

• Optimize's own shipped default (service-config.yaml) is true.
• In our SaaS environment, this is explicitly overridden to false, a deliberate scalability decision made for C8 SaaS, apparently inherited from a feature originally built for Camunda 7.
• The public Self-Managed Helm chart sets no equivalent override, so it silently inherits true, including our own load tests, which never touched this setting either.

A first live comparison (SaaS cluster vs. a Self-Managed weekly load test cluster running the identical scenario) measured the impact directly:

Process	Metric	Self-Managed	SaaS	Ratio
bankDisputeHandling	variables / instance	1,221	208	5.9x
bankDisputeHandling	variable value bytes / instance	59,174	1,880	31.5x
refundingProcess	variables / instance	15	2	7.5x
refundingProcess	variable value bytes / instance	635	13	48.8x

Strong evidence, but not yet proof: the Self-Managed and SaaS environments differ in more than just this one flag (hardware, ILM/retention policy, exporter batch config). We opened camunda/camunda#57127 to track changing Optimize's shipped default, and a load-test PR to stop our own load tests from silently paying this cost, but wanted a cleaner experiment before calling the root cause confirmed.

Expected

If object variable flattening is really the entire explanation, then toggling only that one flag (everything else held identical) should reproduce the same magnitude of difference we saw between the very differently-configured SaaS and Self-Managed environments.

Actual: the controlled A/B test

We deployed two namespaces on the realistic scenario, identical except for one environment variable: CAMUNDA_OPTIMIZE_ZEEBE_INCLUDE_OBJECT_VARIABLE. Same realistic scenario, same 1 root-PI/s rate (confirmed via zeebe_process_instance_creations_total), same historyCleanup config (ttl=P1D, cleanup enabled), same partition count, same age (~6h) at measurement time.

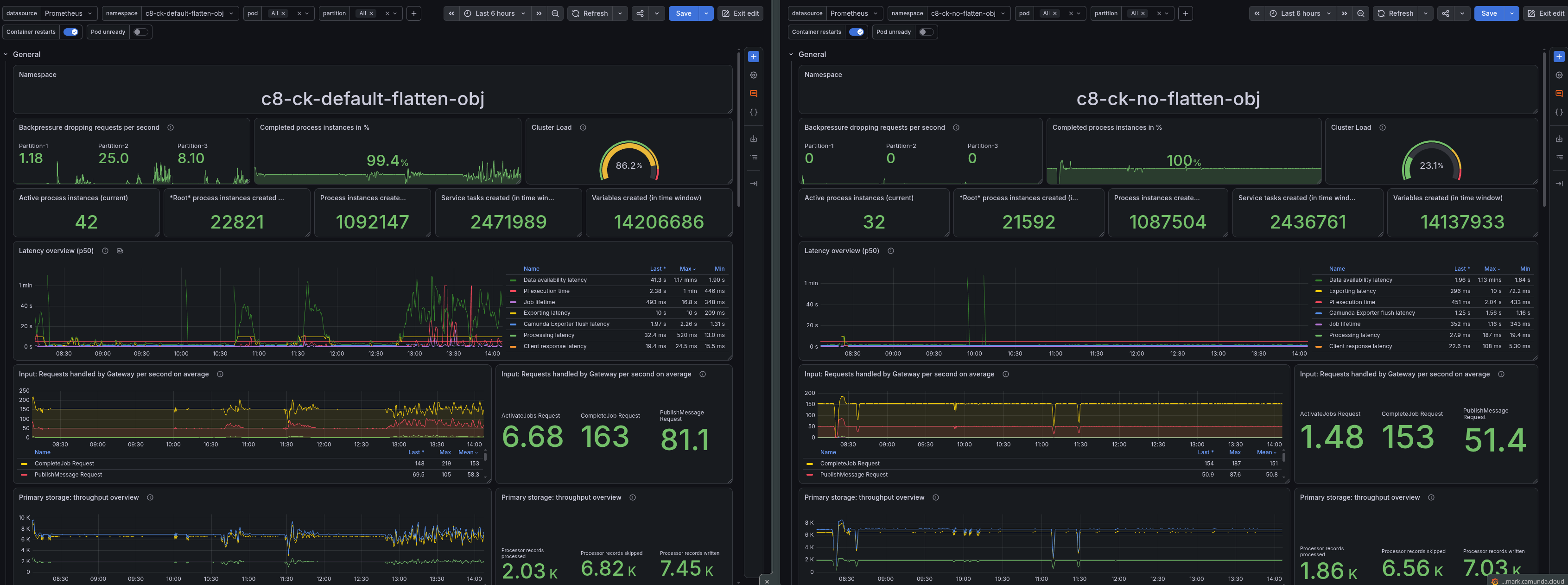

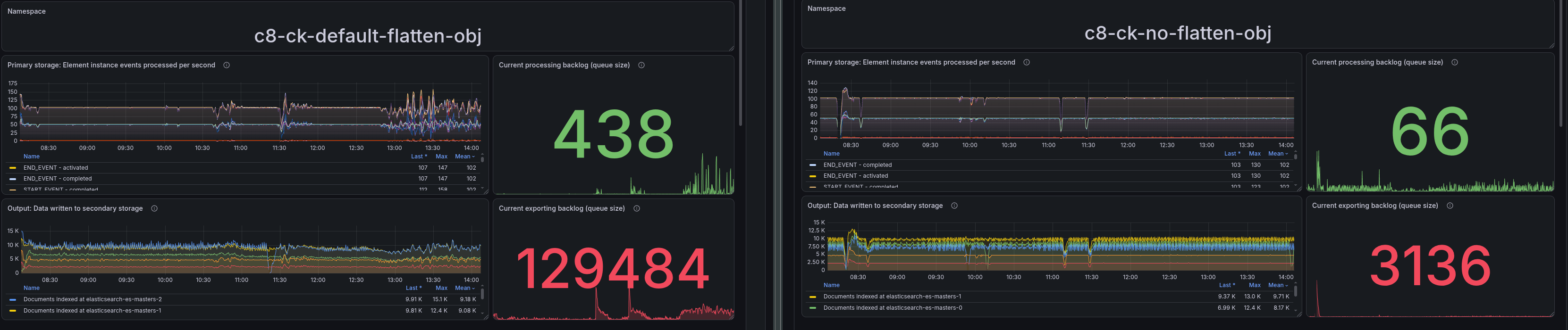

Already, in the general overview, we can see that the load test with the default flatten behavior has some issues with the data availability latency. This is explained by the much larger exporting backlog, which limits, in general, the throughput and affects the latency.

Side note: As you might have recognized, we were able to improve our dashboard to show the actual created root process instances, general process instances (child included), service tasks and variables over time.

Example query for the root instances (something interesting to share):

# All process instances created over the selected time range
# Subtracted by child process instances
# = Root process instances

sum(increase(zeebe_element_instance_events_total{namespace=~"$namespace",partition=~"$partition",pod=~"$pod", action="activated", type="PROCESS"}[$__range]))
-
sum(increase(zeebe_element_instance_events_total{namespace=~"$namespace", partition=~"$partition",pod=~"$pod", action="activated", type="CALL_ACTIVITY"}[$__range]))

The result was cross-checked against Elasticsearch data and naive calculations of 1 (instance per second) * 60 (Seconds) * 60 (Minutes) * 6 (hours) = 21600 root process instances created over the ~6h test window, which matched the Prometheus query result exactly. This number can be used for further calculations, for example to compute the per-root-PI disk and index usage for each namespace (which we will see later).

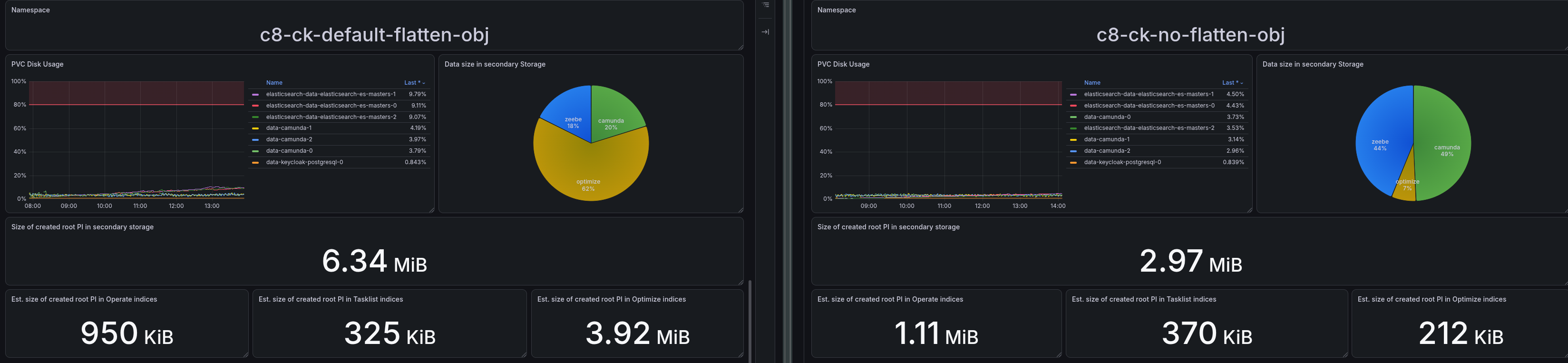

Looking at the disk consumption, we can see that with the default behavior of flattening object variables, Optimize's share of total ES disk is ~62%, while with flattening disabled, it drops to ~7%.

We were able to create new panels on our dashboard based on secondary storage disk and index sizes and the root process instance count, which let us estimate the per-root-PI disk and index usage for each namespace.

The per-instance variable counts and value bytes also match the earlier SaaS-vs-Self-Managed ratios almost exactly. We cross-checked the data against Elasticsearch and obtained the following results.

Result:

Metric	flatten=true	flatten=false	Ratio
Optimize's share of total ES disk	62.8%	7.6%	8.3x
bankDisputeHandling index size (per instance)	3.07 MB	145 KB	~21x
refundingProcess index size (per instance)	25.1 KB	1.18 KB	~21x
bankDisputeHandling sampled instance: vars / value bytes	1,222 / 59,144	208 / 1,828	5.9x / 32.4x
refundingProcess sampled instance: vars / value bytes	15 / 629	2 / 13	7.5x / 48.4x

The per-instance ratios are nearly identical to the earlier SaaS-vs-Self-Managed numbers (5.9x/31.5x and 7.5x/48.8x there, vs. 5.9x/32.4x and 7.5x/48.4x here) despite this test controlling away every other difference between those two environments. That upgrades the finding from "strongly correlated" to causally confirmed: this one flag, in isolation, fully explains the SaaS-vs-Self-Managed Optimize disk gap.

Total Elasticsearch disk usage over the ~6h test window climbed at ~1.52%/hour with flattening on, vs. ~0.58%/hour with it off.

The number that actually matters for sizing

The above metrics helped us explain how the configuration change affects the system and provide a general estimate of process instance disk/index usage. We can see the direct effect.

The number that really matters is the size of a root process instance in the secondary storage (Elasticsearch). This is the number that will drive a capacity planning decision. We can compute this number by taking the total actual on-disk Elasticsearch bytes (via kubelet_volume_stats_used_bytes, which includes the replica; cross-checked against elasticsearch_indices_store_size_bytes_primary × 2, agreeing within ~2%), divided by root process instances created:

sum(kubelet_volume_stats_used_bytes{namespace=~"$namespace", persistentvolumeclaim=~"elastic.*"})
/
(sum(increase(zeebe_element_instance_events_total{namespace=~"$namespace", action="activated", type="PROCESS"}[$__range]))
 - sum(increase(zeebe_element_instance_events_total{namespace=~"$namespace", action="activated", type="CALL_ACTIVITY"}[$__range])))

	flatten=true	flatten=false	Ratio
Total secondary storage / root PI	6.34 MB	2.97 MB	2.13x
Total PVC bytes used	167 GiB	69.4 GiB	2.4x

This is the direct answer to "how much more disk do I need to provision for the same workload?" It's smaller than the 8.3x Optimize-specific disk-share ratio because it's diluted by the fixed Zeebe/Camunda baseline, but it's the number that actually drives a capacity-planning decision.

A closer look at the variables

Pulling the raw variables[] array from a sampled refundingProcess document in each namespace (the simpler of our two processes: one service task, no nested sub-processes) let us go one step further than an empirical ratio.

With flattening on, the document has 15 variables:

disputePosition.name, disputePosition.transactionDate, disputePosition._id, disputePosition,
customer.lastname, loopCounter, disputeId, customer.address, disputePosition.amount, customer,
disputePosition.currency, customer.email, disputePosition.index, customer.firstname, customer.phone

With flattening off, it has 2:

disputeId, loopCounter

So refundingProcess's real variable set is two primitives (disputeId, loopCounter) and two object variables (customer, 5 fields; disputePosition, 6 fields). That gives a formula that matches both documents exactly:

StoredVariables(flatten=false) = P                      (object variables dropped entirely, not even stored unflattened)
StoredVariables(flatten=true)  = P + O + ΣF_i            (each object variable → 1 raw + F_i child-field variables)

where P = primitive variable count, O = object/JSON variable count, F_i = field count of object variable i.

For refundingProcess: P=2, O=2, ΣF = 5 + 6 = 11.

• flatten=true: 2 + 2 + 11 = 15 (matches the live document exactly).
• flatten=false: 2 (matches exactly).
• Ratio: 15 / 2 = 7.5x (matches the measured ratio exactly).

Combined with the per-value storage overhead established in the variable-filtering post (nested-doc indexing + up to 6 secondary representations per stored value, empirically ~5-11x depending on field type), this gives a two-layer sizing model:

Total disk multiplier ≈ A_flatten × A_per_value
A_flatten = (P + O + ΣF_i) / P

The useful part: A_flatten is computable directly from a process's BPMN model and payload schema, no load test required. Long term, we should come up with something even more generic for general disk usage (not just scoped to Optimize).

Validating the formula against the bigger process

refundingProcess is the simple case: one service task, no nesting. bankDisputeHandling is far more complex (24 unique flow node ids, nested sub-processes, its own multi-instance constructs), and reconciling it exactly needed two additions that the simple case didn't exercise. Pulling the exact variable names (not just counts) from both namespaces' sampled documents:

Variable	Where it's set	Occurrences (N)	Type	Fields (F)	Per-occurrence count	Total stored (flatten=true)	Contributes to P (flatten=false)?
loopCounter	MI loop counter, 2 constructs × 50 iterations	100	primitive	-	1	100	yes (100)
correlationKey	"Vendor fraud claim validation" (MI, ×50) + "Document Request Process" (×1)	51	primitive	-	1	51	yes (51)
disputeId	call activity input mapping, per iteration	50	primitive	-	1	50	yes (50)
type	send-task local input, path-dependent	2	primitive	-	1	2	yes (2)
vendor_claim_frequency	fraud subprocess output	1	primitive	-	1	1	yes (1)
isRefund	DMN/gateway output	1	primitive	-	1	1	yes (1)
isHighFraudRatingConfidence	DMN/gateway output	1	primitive	-	1	1	yes (1)
customerId	root start variable	1	primitive	-	1	1	yes (1)
customer_claim_frequency	fraud subprocess output	1	primitive	-	1	1	yes (1)
Primitives subtotal						208	P = 208
customer	root (×1) + call-activity input mapping per iteration (×50)	51	object	5	1+5=6	306	no (dropped)
disputePosition	MI loop item, 2 constructs × 50 iterations	100	object	6	1+6=7	700	no (dropped)
disputeDetails family	root object: raw + disputePositions._listSize + disputeId + disputeAmount.{amount,currency} + disputeStartDate	1	object (nested + 1 list field)	-	6	6	no (dropped)
fraud_score_result	top-level list variable: raw + _listSize	1	list	-	2	2	no (dropped)
Total						1222	208

1222 / 208 = 5.875 ≈ 5.9x (matches the measured ratio exactly).

The 6 and 7 per-occurrence figures are 1 + F: customer has 5 fields (firstname/lastname/email/phone/address) → 1+5=6; disputePosition has 6 fields (_id/index/name/amount/currency/transactionDate) → 1+6=7.

The two additions this process required:

1. Scope repetition. A variable set inside a multi-instance loop occurs once per iteration, not once. This process has two independent 50-iteration multi-instance constructs, both looping over disputeDetails.disputePositions (an embedded sub-process and the call activity spawning refundingProcess), so loopCounter and disputePosition each occur 100 times (50+50). Generalized, the formula sums over every variable-defining scope s, weighted by how many times that scope executes (n_s):

   StoredVariables(flatten=false) = Σ_s n_s × P_s
   StoredVariables(flatten=true)  = Σ_s n_s × (P_s + O_s + ΣF_i,s)

2. F_i is a recursive leaf count, and flattening has no depth limit. disputeDetails looked like it didn't fit 1+F (a mix of a list field, a nested object, and two plain fields). After checking the source: we detected that the flattening is recursive through nested JSON to arbitrary depth, emitting one entry per leaf, a primitive, or an array (arrays are never expanded element-by-element; any array, at any depth, collapses into a single _listSize marker instead).

That also means there's no ceiling on how expensive one object variable can get. Optimize's flattening cost isn't bounded by any config on Optimize's side; it's determined entirely by the shape of whatever JSON the process happens to pass in. A deeply nested object with several fields at each level multiplies out combinatorially (depth × branching factor), with nothing in this code path to stop it. Arrays are the one shape that doesn't compound this way; a _listSize marker costs the same one entry whether the array has 5 elements or 5,000, but a payload built from deeply nested plain objects, with no arrays at all, has no equivalent protection. The customer's payload shape, not anything Camunda controls server-side, determines the worst case here.

What We Learned

• A correlation across two differently-configured environments can look identical to full causation, and it's worth checking. The SaaS-vs-Self-Managed comparison was already compelling (5.9x-7.5x variable count, 31.5x-48.8x bytes), but those two environments differ in hardware, retention policy, and exporter configuration as well. The isolated A/B test reproduced the same numbers almost exactly while controlling for all of that: the stronger and cheaper experiment to run when you can.
• Optimize's object variable flattening, not cardinality, drove our earlier "~29x" figure. We'd previously attributed a large Optimize storage multiplier to high-cardinality string variables (with different values); re-checking the actual benchmark payload showed that the variables involved are constants repeated across every instance. The real driver is the same flattening mechanism confirmed here.
• SaaS already runs with this disabled; Self-Managed customers who haven't touched this setting are silently paying for it, and our own load tests were one of them until now.
• Object variable flattening has no depth limit, which makes it a genuinely open-ended cost, not just a fixed multiplier. It's not "objects cost ~6x more": it recurses through arbitrarily nested JSON, so cost scales with the payload's own shape (depth × branching factor), something Camunda has no control over. Arrays are the exception (they collapse to one marker regardless of length), but a deeply nested object with no arrays at all has nothing to cap it. That makes this a sizing risk that's hard to bound in advance for any given customer's process design, not just a config knob to flip.
• The Optimize-specific disk-share ratio (8.3x) explains the mechanism; the total-disk-per-root-PI ratio (2.13x) is the number to size against. Diagnosing why is different from sizing how much: the second question needs the denominator netted against everything the flag doesn't touch.
• New dashboard panels can save several hours of manual work, and give direct feedback

Possible Improvements / Recommendations

• Change Optimize's shipped default for includeObjectVariableValue to false, matching what SaaS already runs at scale: camunda/camunda#57127.
• Disable object variable flattening in our own load tests by default: camunda/camunda#57190.
• Update Sizing guide with this mechanism and the controlled measurement: camunda-docs#9326.
